Description

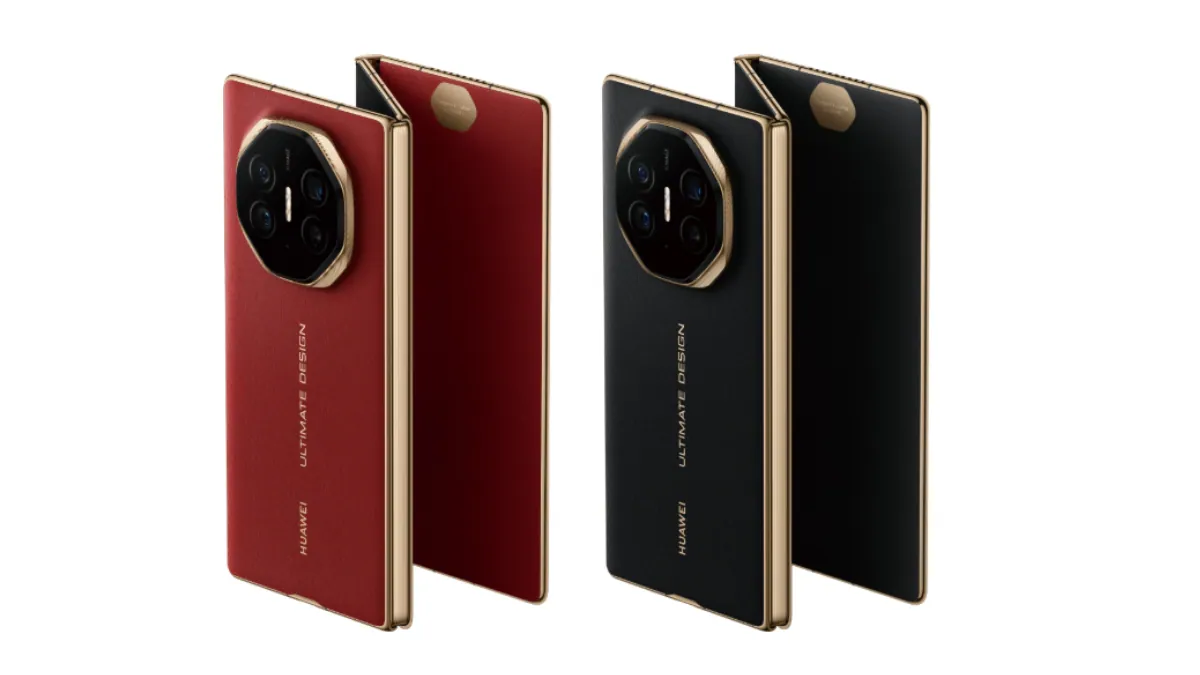

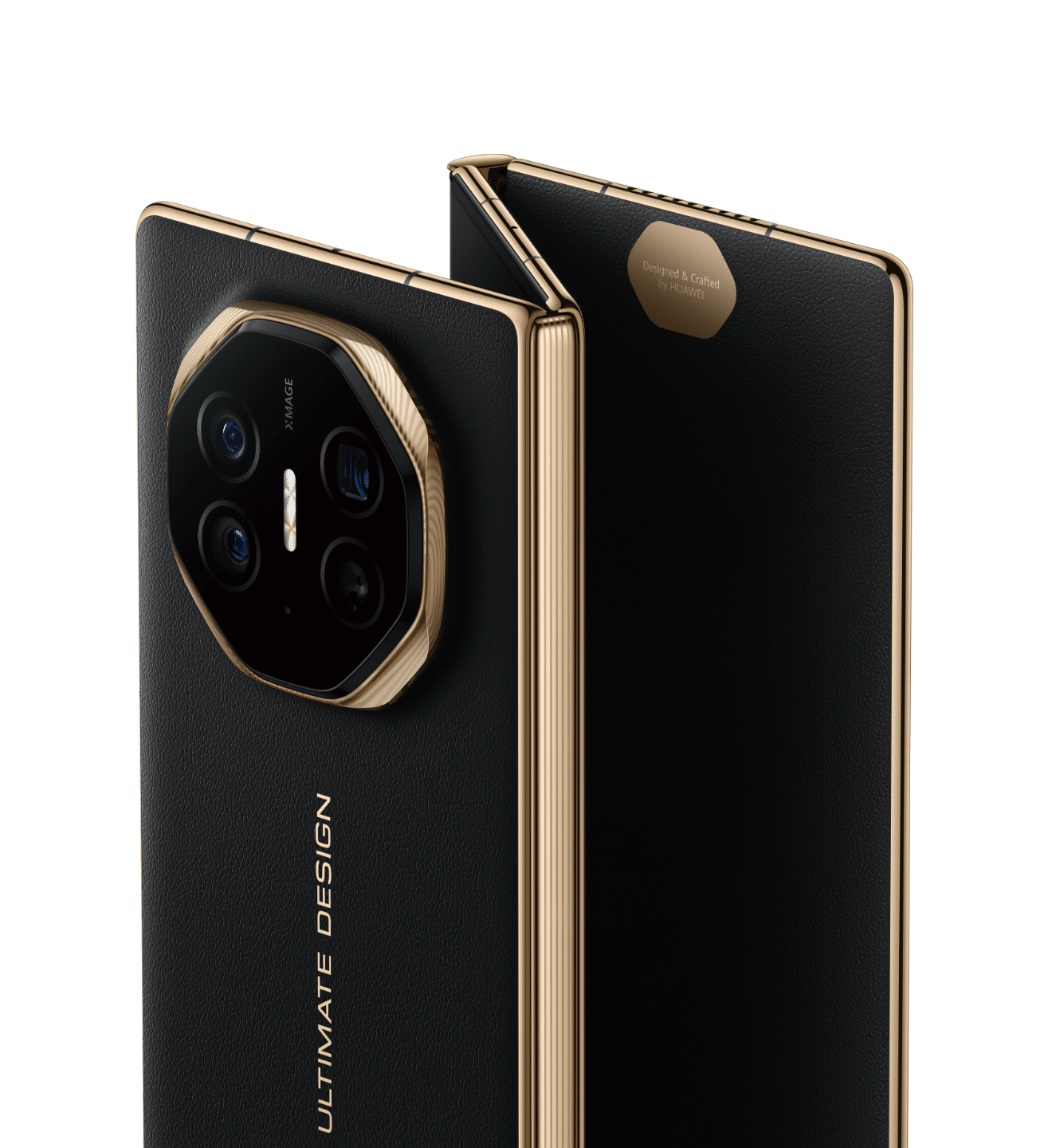

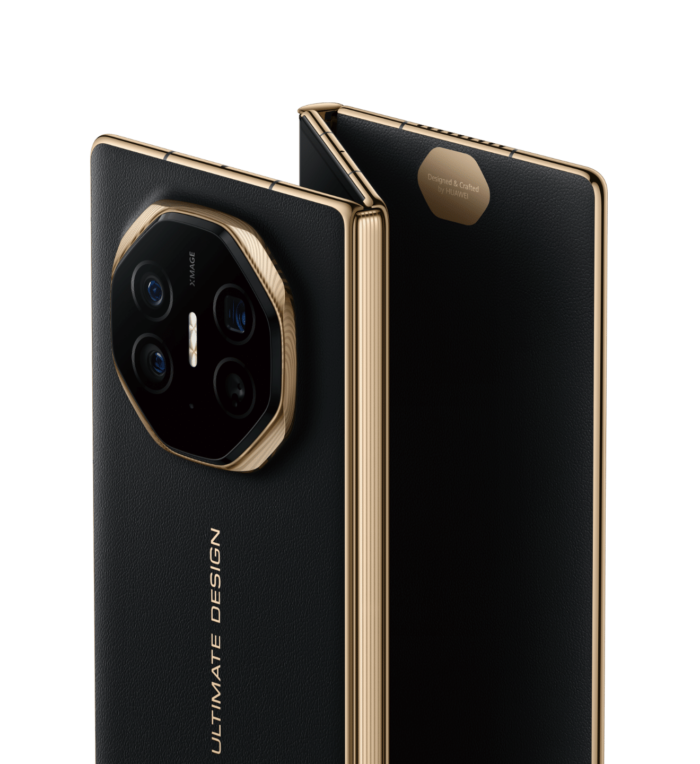

HUAWEI Mate XT ULTIMATE DESIGN

• Dimensions
  Height

  156.7 mm

  Width

  single screen: 73.5 mm

  dual screen: 143.0 mm

  triple screen: 219.0 mm

  Depth

  sigle screen: 12.8 mm

  dual screen: 7.45 mm / 4.75 mm

  triple screen: 3.6 mm / 3.6 mm / 4.75 mm

  Weight

  Approx. 298 g (including the battery, not include screen protector; approx. 306 g including screen protector)

  *Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.

• Display
  Screen Size

  single screen: 6.4 inches

  dual screen: 7.9 inches

  triple screen: 10.2 inches

  *With a rounded corners design on the display, the diagonal length of the single screen is 6.4 inches, the diagonal length of the dual screen is 7.9 inches, and the diagonal length of the triple screen is 10.2 inches when measured according to the standard rectangle, the actual viewable area is slightly smaller.

  Colour

  1.07 billion colours

  Type

  OLED, up to 90 Hz adaptive high dynamic refresh rates,1440 Hz high frequency PWM dimming,up to 240 Hz touch sampling rate

  Resolution

  single screen: 2232 × 1008 Pixels

  dual screen: 2232 × 2048 Pixels

  triple screen: 2232 × 3184 Pixels

  *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.

  PPI

  382 PPI

• Operating System

  EMUI 14.2

• Memory
  RAM + ROM

  16 GB RAM + 1 TB ROM

  *The available internal storage may be smaller as part of the internal storage is occupied by software.

  External Memory Support

  Not supported

• Rear Camera

  50 MP Ultra Aperture Camera (F1.4-4.0 aperture,OIS)

  12 MP Ultra-Wide Angle Camera (F2.2 aperture)

  12 MP Periscope Telephoto Camera (F3.4 aperture, OIS)

  *The photo pixels may vary depending on the shooting mode.

  Autofocus Mode

  Phase focus, contrast focus

  Zoom Mode

  5.5x optical zoom (5.5x zoom is an approximate value, the lens equivalent focal lengths are 24 mm, 13 mm,  125 mm), and 50x digital zoom.

  Image Resolution

  8192 × 6144 pixels

  *The actual image resolution may vary depending on the shooting mode.

  Video Resolution

  3840 × 2160 pixels

  *The actual video resolution may vary depending on the shooting mode.

  Rear Flashlight

  LED flash

  Rear Camera Capture Mode

  Ultra Speed Snapshot, Adjustable Physical Aperture, Mirror Shooting, Enhance images, Quick Menu, Night, Super Macro, Macro, Story Creator, High-Res, Time-Lapse, Ultra Wide Angle Lens, Aperture, Dual-View Video, Portrait, Pro, Slow-Mo, Panorama, Monochrome, Light painting, Filter, Stickers, Documents, Master AI, Moving Picture, 4D Predictive Focus, Capture Smiles, Audio Control, Timer, Burst Shooting

• Front Camera
  Front Camera

  8 MP Selfie Camera (F2.2)

  *In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.

  Image Resolution

  3264 × 2448 pixels

  *The actual image resolution may vary depending on the shooting mode.

  Video Resolution

  3840 × 2160 pixel.

  *The actual video resolution may vary depending on the shooting mode.

  Front Camera Capture Mode

  HDR Vivid, Slow-Motion Selfie, Night, Portrait, Panorama, Time-Lapse, Moving Picture, Filter, Stickers, Capture Smiles, Mirror Reflection, Audio Control, Timer

• Battery

  5600 mAh (typical value)

  *The Battery Rated Capacity is 5500 mAh.

  **Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.

  ***Non-removable battery. Removing the battery may cause damage to the device. To replace or repair the battery, please visit an authorized HUAWEI Service Centre.

• Charging

  HUAWEI SuperCharge (Max 66 W)

  The phone supports 11V/6A (Max 66 W) super-fast charging and is compatible with 10V/4A or 10V/2.25A or 4.5V/5A or 5V/4.5A super-fast charging, and 9V/2A fast charging.

  *Support a maximum of 66 W Huawei wired SuperCharge, and needs to be used with 66 W or higher Huawei SuperCharge package. Whether the charging kit needs to be purchased separately depends on the actual packing list.The actual charging power varies depending on the scenario.

  Wireless HUAWEI SuperCharge (Max 50 W)

  *Need to purchase the HUAWEI SuperCharge Wireless Charger Stand (Max 50 W / 80 W) or HUAWEI SuperCharge Wireless Car Charger (Max 50 W / 80 W), and used with dedicated HUAWEI 66 W or 88 W or 100 W Power Adapter. The actual charging power varies depending on the scenario.

• Splash, Water, and Dust Resistant
  IPX8

  Not supported

• Network
  Dual SIM model

  Primary SIM Card

  GRL-LX9 (Dual SIM model)

  4G LTE FDD: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28

  4G TD-LTE: Bands 34 / 38 / 39 / 40 / 41 / 42

  3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19

  2G GSM: Bands 2 / 3 / 5 / 8 (1900 / 1800 / 850 / 900 MHz)

  *Functions available on the live network depend on the situations of carrier’s network and related services deployment.

  Secondary SIM Card

  4G LTE FDD: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28

  4G TD-LTE: Bands 34 / 38 / 39 / 40 / 41 / 42

  3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19

  2G GSM: Bands 2 / 3 / 5 / 8 (1900 / 1800 / 850 / 900 MHz)

  *Functions available on the live network depend on the situations of carrier’s network and related services deployment.

• Connectivity
  WLAN

  2.4 GHz and 5 GHz



  802.11a/b/g/n/ac/ax, 2 × 2 MIMO, HE160, 4096 QAM, 8 Spatial-stream Sounding MU-MIMO

  *Need router support

  Bluetooth

  Bluetooth 5.2, Support BLE, SBC, AAC, LDAC and L2HC.

  USB

  USB Type-C, USB 3.1 GEN1

  *This function should be used with the USB cable (non-standard USB cable, need to be purchased separately) that supports this function.

  **The inbox USB cable supports USB 2.0.

  Earjack

  USB Type-C earjack

  *Support USB Type-C digital headset.

• NFC

  Read Write mode/Card Emulation mode (payment by *SIM card, or HCE) is supported.

  *The SIM card used for SIM card payment can only be inserted into the SIM1 card slot.

• Location

  GPS (L1 + L5 Dual band)/AGPS/GLONASS/BeiDou(B1I + B1C + B2a + B2b Quad-band)/GALILEO(E1 + E5a + E5b Tri-band)/QZSS (L1 + L5 Dual band)/NavIC

• Sensors

  Gesture Sensor

  Gravity Sensor

  Infrared Sensor

  Fingerprint Sensor

  Hall Sensor

  Gyroscope

  Compass

  Barometer

  Ambient Light Sensor

  Proximity Sensor (Functions are implemented through software solutions.)

  Laser Sensor

  Colour Temperature Sensor

• Media
  Audio

  HUAWEI Histen, support stereo sound

  *.mp3, *.mp4, *.3gp,*.ogg, *.amr, *.aac, *.flac, *.wav, *.midi

  Video

  *.3gp, *.mp4
