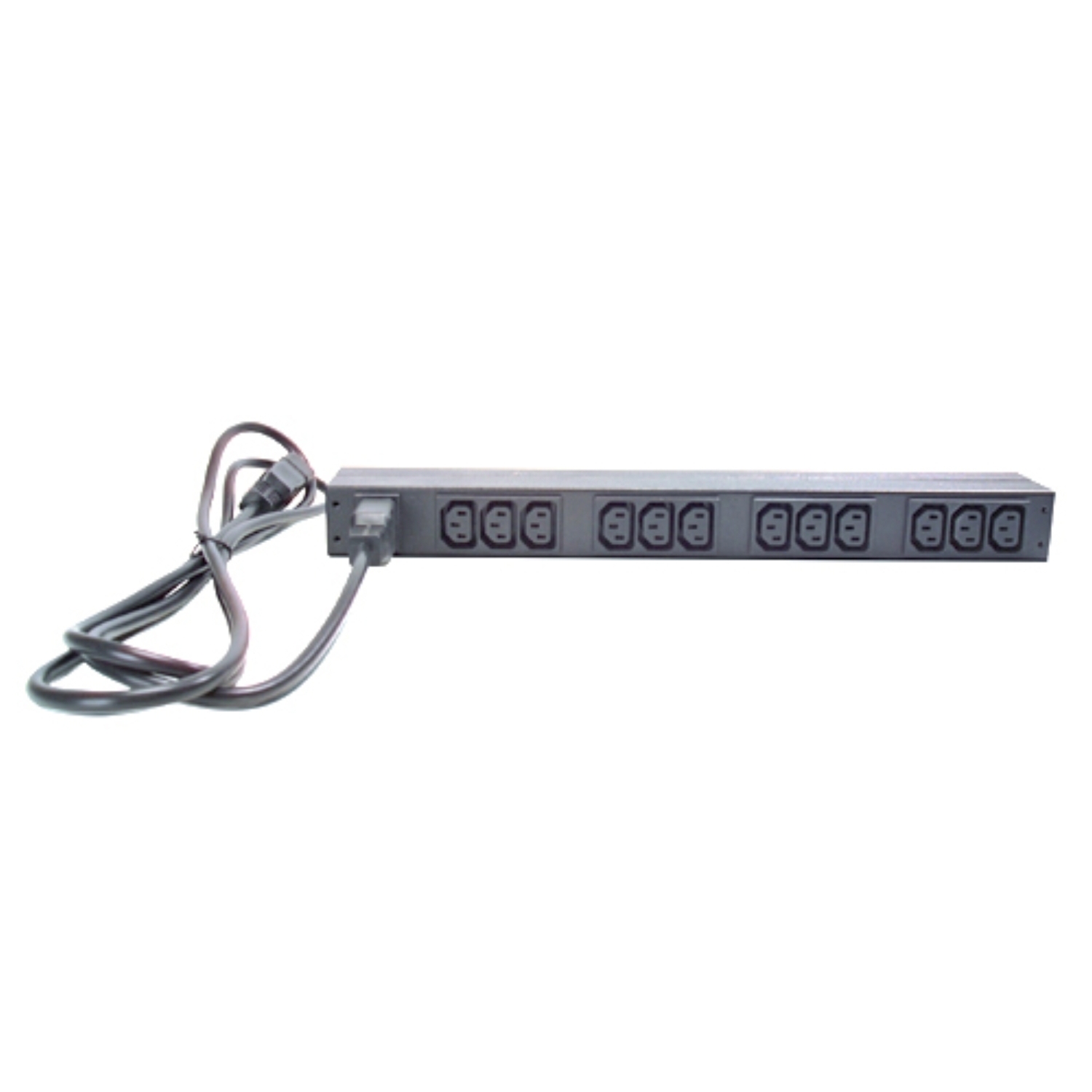

APC AP9565 Rack PDU Basic 1U 16A 208/230V (12) C13

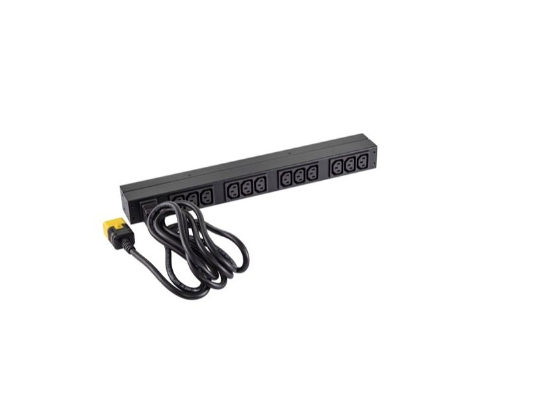

APC AP9565 Rack PDU Basic 1U 16A 208/230V (12) C13 - Image 2
APC AP7553 RACK BASIC PDU ZERO U32A 230V
APC AP7553 RACK BASIC PDU ZERO U32A 230V
Back to products
APC AP5201 8 Port Multiplatform Analog KVM switch
APC AP5201 8 Port Multiplatform Analog KVM switch
APC

APC AP9565 Rack PDU Basic 1U 16A 208/230V (12) C13

✅ Contact for Latest Price

  • 100V-240V Input, Basic 16A rackmount Power Distribution Unit
  • Input: IEC-320 C20 (3. 7 kW)
  • Output Receptacles: Twelve (12) C13 Outlets
  • 1U Horizontal Mounting PDU
  • Cord Length: 8. 2 feet

Today’s Promotion ON

BrandAPC
Compare
Category:
Report Abuse
Description

APC AP9565 Rack PDU Basic 1U 16A 208/230V (12) C13

Specifications

Overview
PresentationReliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Lead timeUsually in Stock
Main
Main Input Voltage200 V
208 V
230 V
PDU TypeBasic
Main Output Voltage208 V
230 V
Input Connection TypeIEC 60320 C20
Number of rack unit1U
Cable length8.2 ft (2.50 m)
Number of cables1
Provided EquipmentInstallation guide
Rack Mounting brackets
Physical
ColorBlack
Height1.73 in (4.4 cm)
Width17.60 in (44.7 cm)
Depth2.24 in (5.7 cm)
Net Weight4.52 lb(US) (2.05 kg)
Mounting LocationFront
Rear
Mounting preferenceNo preference
Mounting ModeRack-mounted
Mounting positionHorizontal
Input
Input current limits16 A
Load Capacity3680 VA
Input Frequency50/60 Hz
Output
Number of power socket outlets12 IEC 60320 C13
Conformance
Product CertificationscUL Listed
CE
Queensland Australia
UL Listed
VDE
StandardsUL 60950
Environmental
Ambient Air Temperature for Operation32…113 °F (0…45 °C)
Relative Humidity0…95 %
Operating altitude0…10000 ft
Ambient Air Temperature for Storage-13…149 °F (-25…65 °C)
Storage Relative Humidity0…95 %
Storage altitude0…50000 ft (0.00…15240.00 m)
Ordering and shipping details
GTIN731304213055
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height2.76 in (7 cm)
Package 1 Width18.27 in (46.4 cm)
Package 1 Length9.02 in (22.9 cm)
Package 1 Weight8.01 lb(US) (3.632 kg)
