2.0GHz 12-core 1P 32GB-R MR408i-o NC
8SFF 1000W PS Server (P52560-421)

Poweredbythe 4th and 5th Gen Intel®
Xeon® Scalable Processors with nextgeneration
technology that support up to
64 cores at 350W and 16 DIMMs for
DDR5 memory at speeds up to 5600 MHz.
Support for up to 8 TB total DDR5 memory
with 16 DIMM channels per processor
delivers increased performance, lower
power requirements, and High Bandwidth
Memory (HBM) support.
Support for PCIe Gen5, resulting in
improved bandwidth, advanced data
transfer rates, and higher network speeds
from the PCIe Gen5 serial expansion bus.
Includes the new HPE Integrated Lights-
Areyoulooking for a dual-socket scalable server solution to
power data analytics or hybrid cloud workloads?

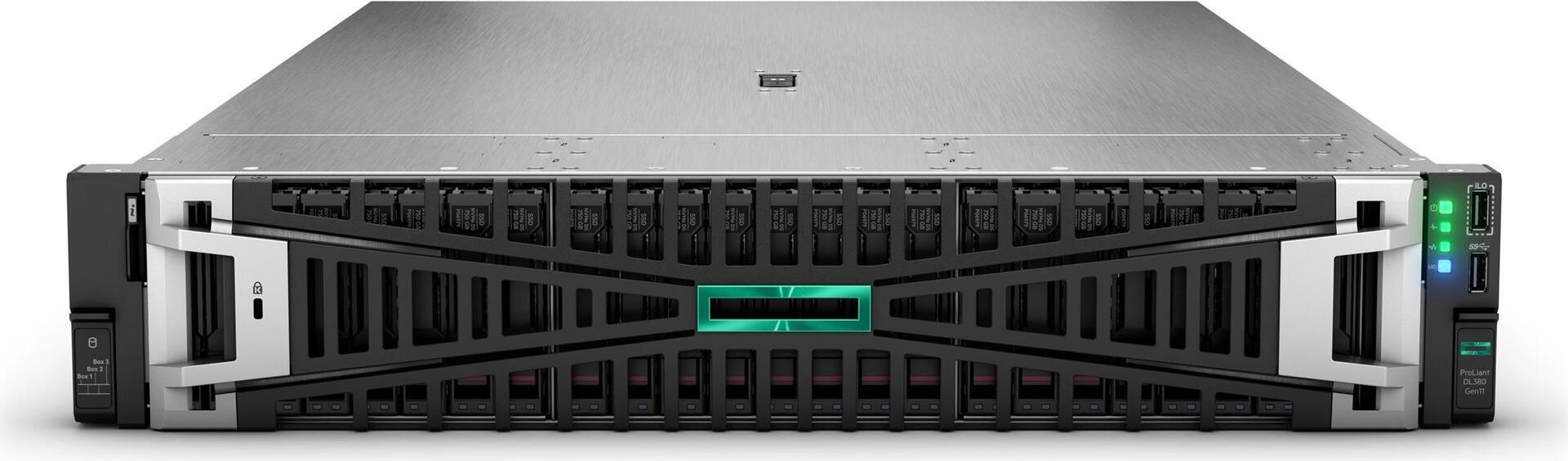

The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P
solution that delivers exceptional compute performance,
memory density with scalability and high-speed data transfer
rate to run your most demanding applications.
Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors
with up to 64 cores, 8 TB of memory, and 20 EDSFF drive as
well as increased memory bandwidth and high-speed PCIe
Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect
solution for software-defined storage, video transcoding, and
virtualized apps.
The HPE ProLiant DL380 Gen11 server is engineered to
Data sheet
Data sheet
Out 6 (iLO 6) server management software
that enables you to securely configure,
monitor, and update your HPE ProLiant
Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable, high-availability
RAID M.2 boot options.
Supports up to 8 single wide (SW) or 3
double wide (DW) GPUs to accelerate
graphic intense workloads.
HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE
ProLiant DL380 Gen11 servers simplify the way you control your business’s
compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive
with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless,
simplified support and lifecycle management reducing tasks and shortening
maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11
servers, whether purchased as physical servers or consume as-a-service using
HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE
GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops
Management is an as-a-service compute management experience that delivers
greater simplicity, agility, and speed across your entire compute landscape,
globally.
The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and
data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers)
requiring maximum core count, GPU capabilities, and network and I/O
bandwidth.
Harness major computer performance. The HPE ProLiant DL380 Gen11 server
is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with nextgeneration
technology that supports up to 64 cores per processor, 350W, and
up to 8 TB of memory.
The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust,
HPE’s fundamental approach to security that provides zero-trust architecture at
the silicon level and ensures all server essential firmware is free from malware or
compromised code.
The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds
hardware and software-assisted security features, including Intel® Software
Guard Extensions and Intel® Boot Guard, which secure the server hardware
foundation on which critical apps run and better protect data in memory.
HPE ProLiant Gen11 servers continuously protect healthy servers by providing
rapid detection of security-compromised servers, even to the point of not
allowing them to boot if it identifies and contains malicious code, and secure
servers at the edge with IDevID certificates installed by default.
HPE ProLiant servers provide automated recovery from a security event,
including restoration of validated firmware, and facilitating recovery of operating
system, application and data connections, providing the fastest path to bring a
server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to
generation, HPE ProLiant Gen11 is engineered with a fundamental security
approach to defend against increasingly complex threats through an
uncompromising commitment to constant security advancements that are built
into our DNA.
Page 2
·
·
optimize IT with a cloud operating experience, built-in security,
and optimized performance for workloads to drive your
business forward.
Features
Intuitive Cloud Operating Experience: Simple, Self-service, and
Automated
Trusted Security by Design: Uncompromising, Fundamental, and
Protected
Optimized Performance for your Workloads: Accelerated, Open,
and Efficient
Data sheet
The HPE ProLiant DL380 Gen11 server is supported by HPE GreenLake to
simplify IT infrastructure management across your entire hybrid estate. With
24×7 monitoring and management, our experts do the heavy lifting to manage
your environment with services built into consumption-based solutions.
Hewlett Packard Enterprise provides customers with choices in how they acquire
and consume IT beyond traditional financing and leasing, offering options that
free trapped capital, accelerate infrastructure updates, and provide on-premises
pay-per-use consumption with HPE GreenLake.
Page 3

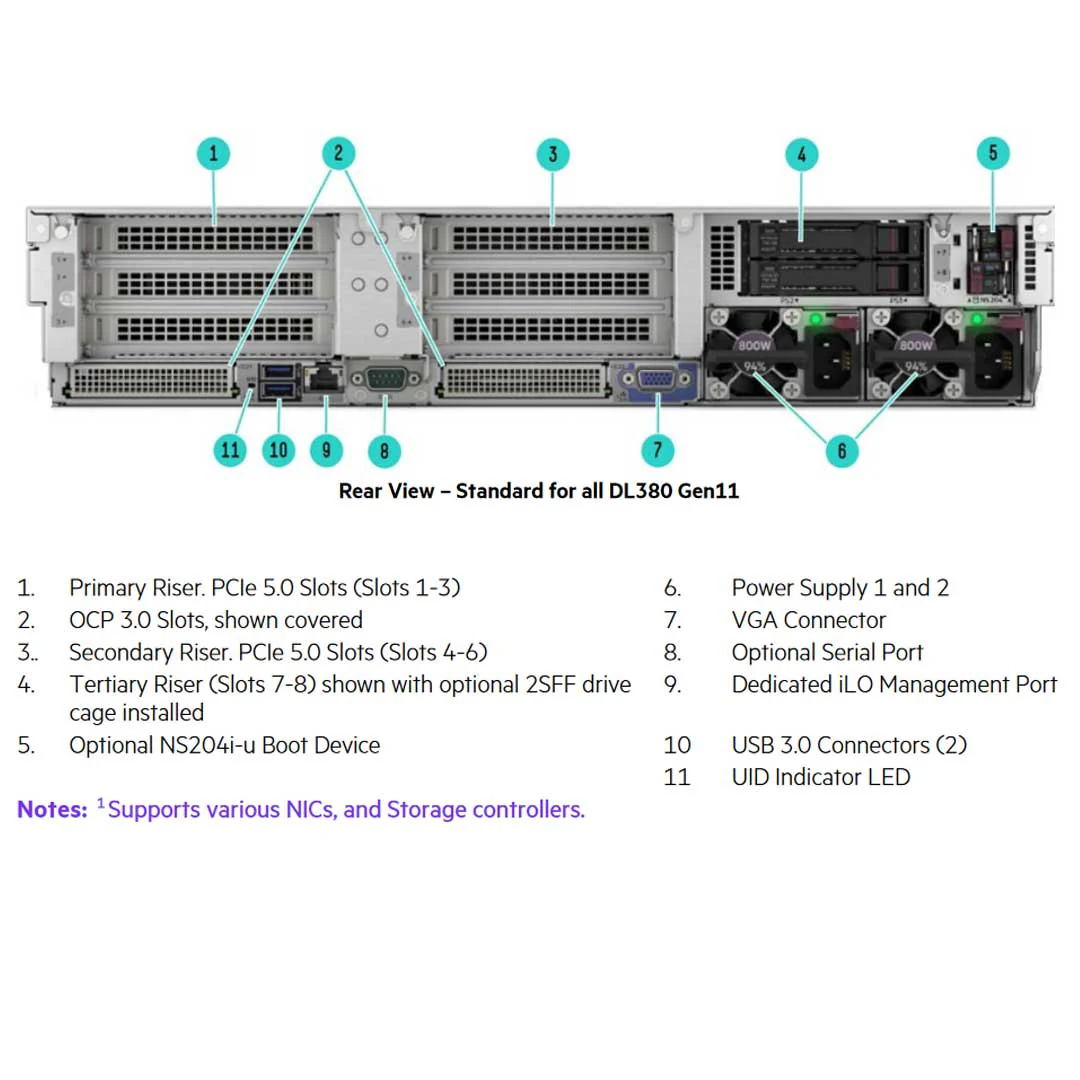

The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates
and higher network speeds from the PCIe Gen5 serial expansion bus, with up to
2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.
It provides 16 DIMM channels per processor for up to 8 TB total DDR5 memory
with increased memory bandwidth and performance, and lower power
requirements.
It provides real-time operational feedback on server performance plus
recommendations for fine-tuning BIOS settings to customize for changing
business needs.
Available in an As-a-Service Experience
Technical specifications HPE ProLiant DL380 Gen11 4410Y 2.0GHz 12-core
1P 32GB-R MR408i-o NC 8SFF 1000W PS Server
P52560-421
Weight
Warranty
Memory type
DIMM capacity
Expansion slots
Processor name
Processor cache
Processor speed
Product Number
Optical drive type
Storage controller
Processor number
Power supply type
Network controller
System fan features
Included hard drives
Processor core available
Infrastructure management
Product dimensions (metric)
12 core
2.0 GHz
41.32 kg
30 MB L3
32 GB RDIMM
60 x 99.8 x 27.3 cm
1 processor included
HPE DDR5 Smart Memory
None ship standard, 8 SFF supported
Hot-plug redundant fans, Standard Fan Kit
1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Intel® Xeon® Silver 4410Y (12 core, 2.0 GHz, 30 MB L3, 150W)
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Optional DVD-ROM Optional via Universal Media Bay External support only
Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs
HPE iLO Standard with intelligent provisioning (embedded), and HPE GreenLake Compute Ops
Management
3/3/3: ServerWarrantyincludesthreeyearsofparts,three yearsoflabor,andthreeyearsof
onsite support coverage. Additional information regarding worldwide limited warranty and technical
support is available at: https://support.hpe.com/hpsc/wc/public/home. Additional HPE support and
service coverage, to supplement the product warranty, is available. For more information, visit
https://www.hpe.com/support.
Data sheet Page 4
Find a partner
For additional technical
information, available models
and options, please reference
the QuickSpecs
No matter where you are in your transformation journey, you can count on HPE Services
to deliver the expertise you need when, where and how you need it. From strategy and
planning to deployment, ongoing operations and beyond, our experts can help you realize
your digital ambitions.
Consulting services
Experts can help you map out your path to hybrid cloud and optimize your operations.
Managed services
HPE runs your IT operations, giving you unified control, so can focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT
operational tasks while freeing up valuable time and resources.
··
HPE Complete Care Service: a modular service designed to help optimize your entire IT
environment and achieve agreed upon IT outcomes and business goals. All delivered
by an assigned team of HPE experts.
HPE Tech Care Service: the operational service experience for HPE products. The
service provides access to product specific experts, an AI driven digital experience, and
general technical guidance to help reduce risk and search for ways to do things better.
Lifecycle Services
Address your specific IT deployment project needs with tailored project management and
deployment services.
HPE Education Services
Training and certification designed for IT and business professionals across all industries.
Create learning paths to expand proficiency in a specific subject. Schedule training in a
way that works best for your business with flexible continuous learning options.
The Defective Media Retention (DMR) service feature option applies only to Disk or
eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.
Comprehensive Defective Material Retention (CDMR) allows you to keep all data retentive
components.
HPE GreenLake edge-to-cloud platform is HPE’s market-leading as-a-Service offering that
brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and
edges – with one unified operating model, on premises, fully managed in a pay per use
model.
If you are looking for more services, like IT financing solutions, please explore them here.
HPE Services
HPE GreenLake
Make the right purchase decision.
Contact our presales specialists.
© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without
notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Parts and Materials: HPE will provide HPE-supported replacement parts and materials required to maintain the covered
hardware.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth
in the manufacturer’s operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired,
or replaced as part of these services.
Intel, Intel Xeon, and Intel Optane are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. All
third-party marks are property of their respective owners.
Image may differ from the actual product
PSN1014731749NLEN, February, 2024.
