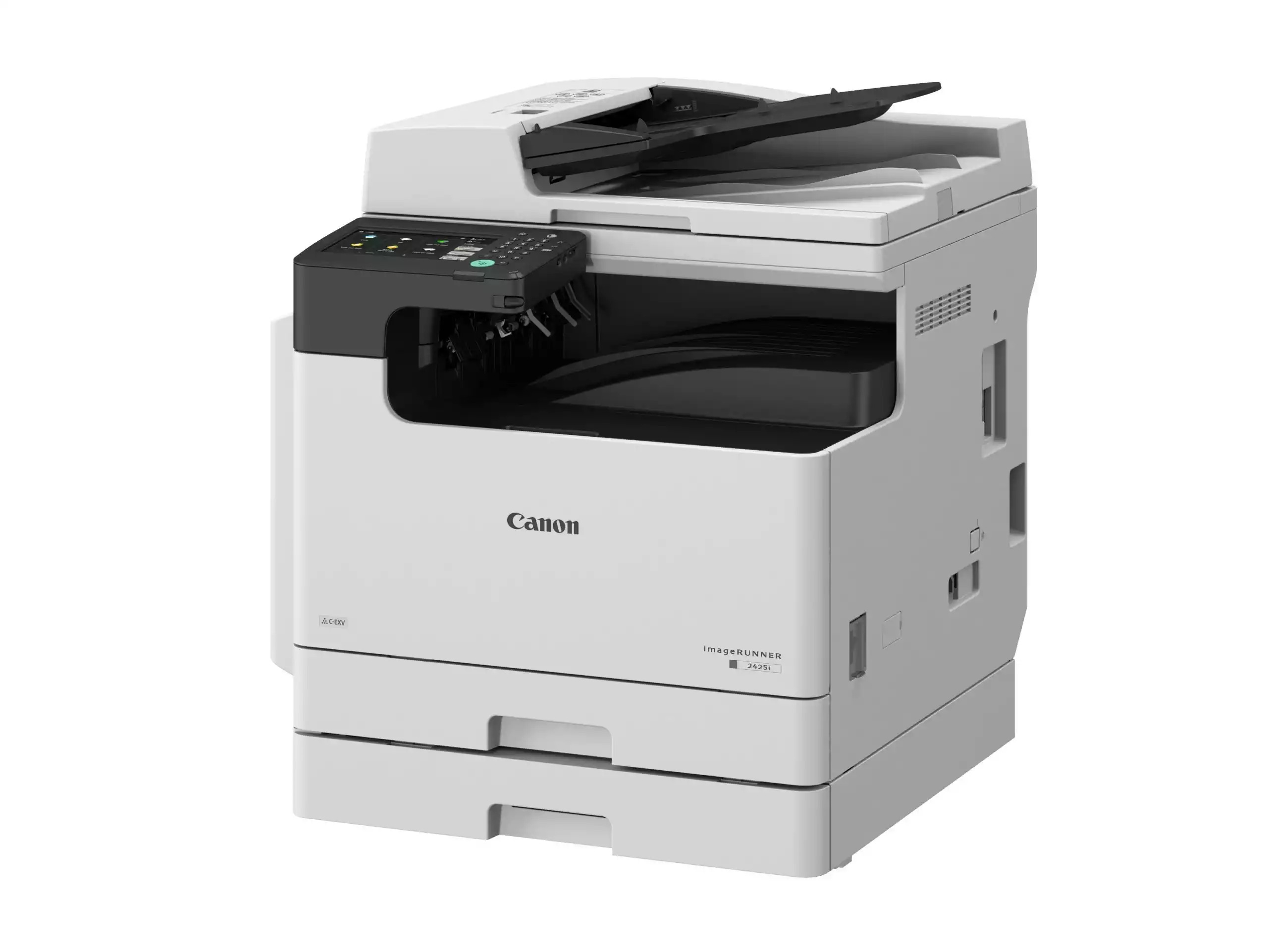

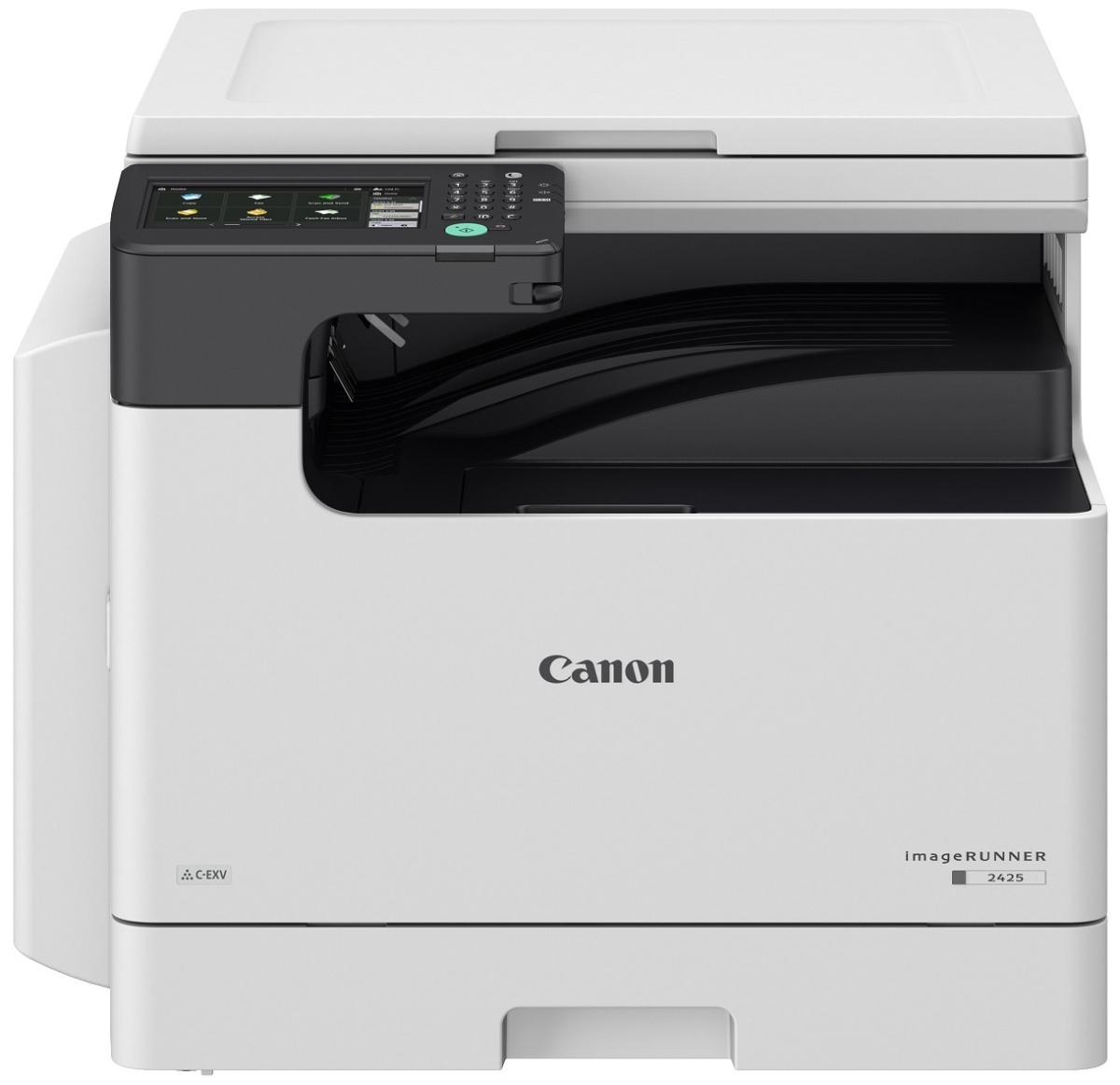

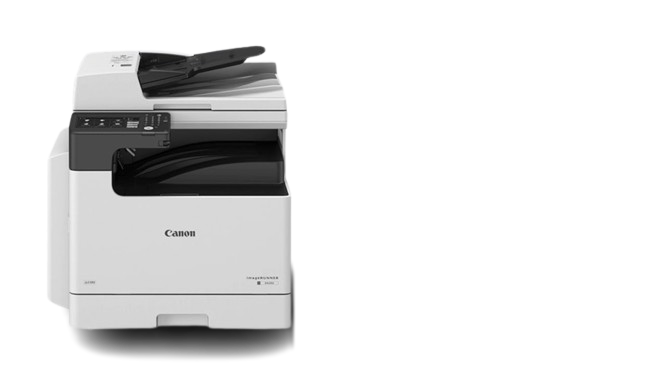

A3 Monochrome Laser Multifunctional

Print, Copy, Scan, Send and Optional Fax

1GHz Dual Core Processor

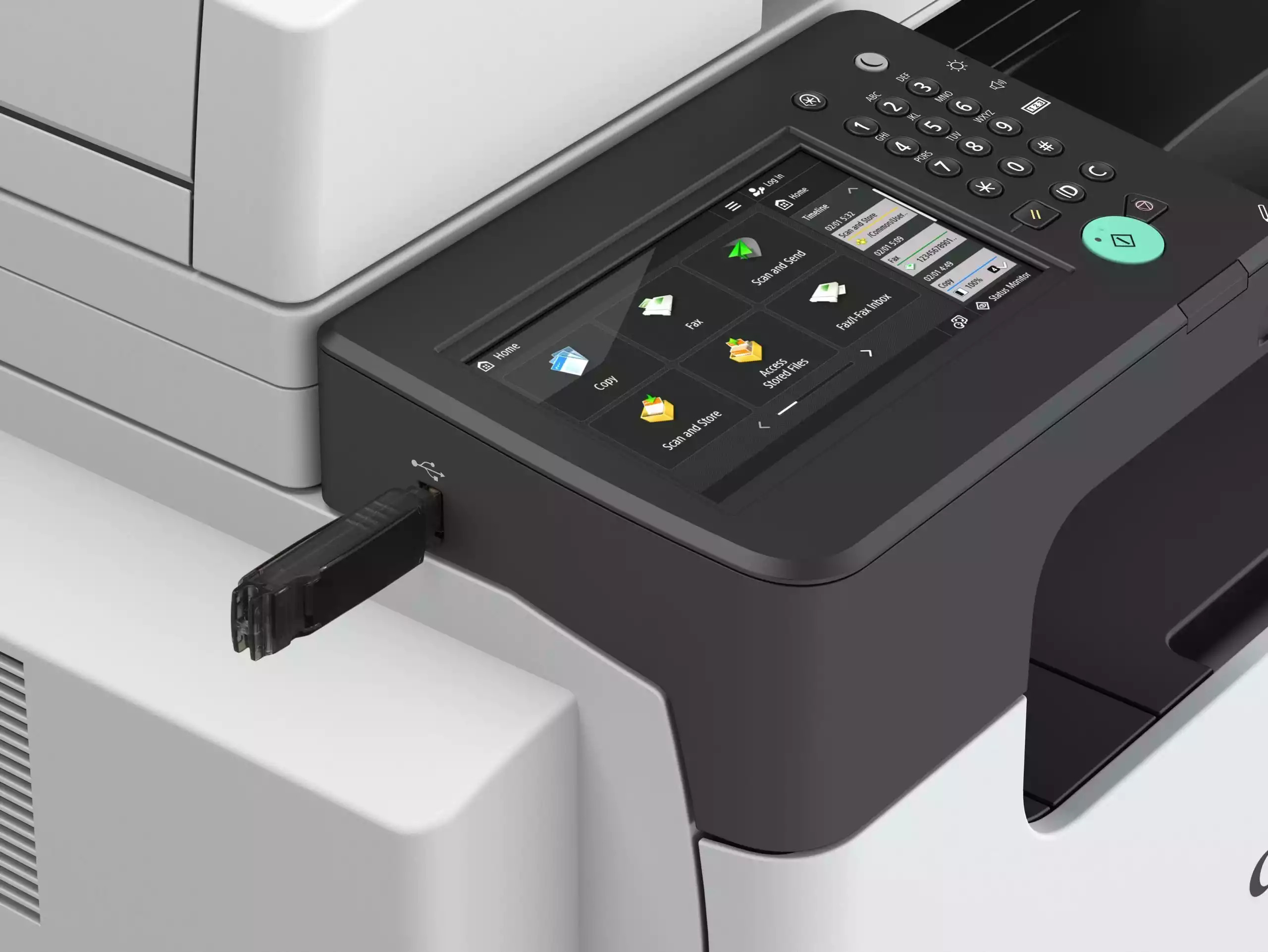

17.8cm (7 inch) TFT LCD WVGA Colour Touch panel

Standard: 2.0GB RAM

Standard: 64GB eMMC (available space: 30GB)

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1

Standard: 330 sheets
Maximum: 580 sheets (with Cassette Feeding Module-AK1)

Max: 250 sheets

Multi-purpose Tray:
Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Label, Pre-punched, Envelope

Paper Cassette:
Plain, Recycled, Colour, Pre-punched

Multi-purpose tray:

Standard size: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size/Free Size: Min. 95.0 x 139.7 mm up to 297.0 x 431.8 mm

Paper Cassette:

Standard size: A3, A4, A4R, A5R, B4, B5, B5R

Multi-purpose tray: 60 to 157 gsm
Paper Cassettes: 64 to 90 gsm
Duplex: 60 to 90 gsm

4 Seconds or less*

* Time from device power-on to when key operations can be performed on the touch panel display.

From Sleep Mode: 10 seconds or less

From Power On: 12 seconds or less *

* Time from device power-on, until copy ready (not print reservation)

iR 2425: 627 x 665 x 516 mm
iR 2425i: 627 x 692 x 616 mm

1,065 x 1,285 mm

iR 2425i: Approx. 39.2 kg including toner
iR 2425: Approx. 34.2 kg including toner

Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)

600 x 600

Standard: UFR II, PCL6,
Optional: Adobe®PostScript®3TM

Supported file types:
RUI: PDF, EPS, TIFF/JPEG, XPS
USB Memory: PDF, TIFF/JPEG, XPS
Network Place: PDF, TIFF/JPEG, XPS

AirPrint, Mopria, Google Cloud Print, Canon
PRINT Business and uniFLOW Online
A range of software solutions is available to provide
printing from mobile devices and cloud-based services
depending on your requirements. Please contact your
sales representative for further information.

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*¹ (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*²
PS fonts: 136 Roman

*¹ Requires optional PCL International Font Set-A1
*² Requires optional Barcode Printing Kit-D1

Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing,
Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date,
Scheduled Printing, Printing Using a Virtual Printer

UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019

PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PPD: Windows® 7/8.1/10, MAC OS X (10.10 or later)

Windows®/MAC OS: As of March, 2020

Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)

Approx. 7.4 seconds or less

600 × 600

Up to 9,999 copies

Automatic or Manual (9 Levels)

25% – 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400%

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Gutter, Copy ID Card, Free Size Original, Reserved copy, Copy Sample

iR 2425 : Standard Platen Cover
iR 2425i: Standard Duplexing Automatic Document Feeder [2-sided to 2-sided]

50 Sheets

Platen: Sheet, Book

Document Feeder media weight :
1-sided scanning: 52 to 105 gsm (BW/CL)
2-sided scanning: 52 to 105 gsm (BW/CL)

Only 1-sheet feeding is supported in 37-52 and
105-128 gsm.

Platen: max. scanning size: 297.0 x 432.0 mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, B4, B5, B5R
Custom size: 139.7 x 148.5 mm to 297.0 x 432.0 mm

DADF：
1-sided Scanning: 35/25 (300 dpi, send), 25/13 (600 dpi, copy)
2-sided Scanning: 12/8 (300 dpi, send), 8/4 (600 dpi, copy)

Copy: up to 600 x 600
Send: (Push, BW) up to 600 x 600, (Pull, BW) up to 600 x 600
(Push, CL) up to 300 x 300, (Pull, CL) up to 300 x 300
Fax: up to 600 x 600

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 7/8.1/10
Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016

Push scan, Pull scan, Scan to Network, Scan to memory media (USB Memory Key), Scan to Mobile Devices, Scan to cloud-based services (uniFLOW Online)

Standard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP WebDAV
Optional: Super G3 FAX

LDAP (2,000)/Local (1,600)/Speed dial (200)

Push: 100 x 100, 150 x 150, 200 x 100 (Standard), 200 x 200 (Fine), 200 x 400*(Super Fine), 300 x 300, 400 x400*(Ultra Fine), 600 x 600*

Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 x 400*, 600 x 600*

*Colour mode is black and white only

File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
Email/iFax: SMTP (send), POP3 (receive)

Standard：TIFF (MMR), JPEG *, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)

*Single page only

Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness,
Erase Frame, Job Build, Sender’s Name (TTI), Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

1

Super G3: 33.6 kbps
G3: 14.4 kbps

MH, MR, MMR, JBIG

400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal)

Sending: A3, A4, A4R, A5*2, A5R*2, B4, B5*1, B5R*2
Receiving: A3, A4, A4R, A5R, B4,  B5, B5R

*1 Sent as B4
*2 Sent as A4

Up to 30,000 pages

Max. 200

Max. 199 dials

Max. 256 addresses

Yes

Sender’s Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, TX Reservation, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox

Standard: USB Memory

User Authentication (Picture Login, Picture and PIN Login, Function Level Login, Mobile Login),
Deparment ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login)

Access Management System (Access Control)

Standard:
Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*1)
Recieve Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically)
Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2)
Send Data Security (Confirming FAX number, Allow/Restrict Fax Driver Transmissions, S/MIME Support)

*1 Requires optional uniFLOW Online / uniFLOW
*2 Requires optional Universal Send Digital User Signature Kit-C1

TLS, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception)

Protecting MFP Software Integrity, Verify System at Start-up

Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting

Temperature: 10 to 30 ºC (50 to 86 ºF)
Humidity: 20 to 80 % RH  (Relative Humidity)

250 V, 50/60 Hz, 10 Amp

Maximum: Approx. 1,500 W

Standby: Approx. 22.1 W*¹

Sleep mode: Approx. 1 W*² /Approx. 2 W*³

*1 Reference value: measured one unit
*2 Wireless LAN power serve mode OFF
*3 Wireless LAN power serve mode ON
*2/*3 Sleep mode may not possible in all circumstances due to certain settings

Typical Electricity Consumption (TEC)* :
iR 2425 : 0.31 kWh
iR 2425i: 0.30 kWh

*As per US ENERGY STAR version 3.0

For detailed information relating to Lot26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/

Sound Power Level (LWA,m)
(1-sided/2-sided)
Active: 6.6* B, kv 0.3* B

Sound Pressure Level (LpAm) (Reference)
Bystander’s position: (1-sided)
Active: 54 dB*

* Reference value: measured only one unit with ISO7779, described with ISO9296:2017

Blue Angel

C-EXV 60 Black Toner

Black: 10,200 impressions (A4)

uniFLOW Online

iW Management Console
eMaintenance
Content Delivery System

ScanGear

Canon Driver Configuration Tool

IW DESKTOP

Paper Capacity: 250 sheets x 1 (80 gsm)
Paper Type: Plain, Recycled, Colour, Pre-punched
Paper Size: A3, A4, A4R, A5, B4, B5 ,B5R
Paper Weight: 64 to 90 gsm
Power Supply: From the Main Unit
Dimensions (W x D x H): 581 x 575 x 92 mm
Weight: Approx. 5.8 kg

Picture Login-A1

PCL International Font Set-A1
PS Printer Kit-CM1

Universal Send Trace & Smooth PDF Kit-A1
Universal Send Digital User Signature Kit-C1

Barcode Printing Kit-D1

Copy Control Interface Kit-D1

Super G3 FAX Board-BE1
Remote Fax Kit-A1
