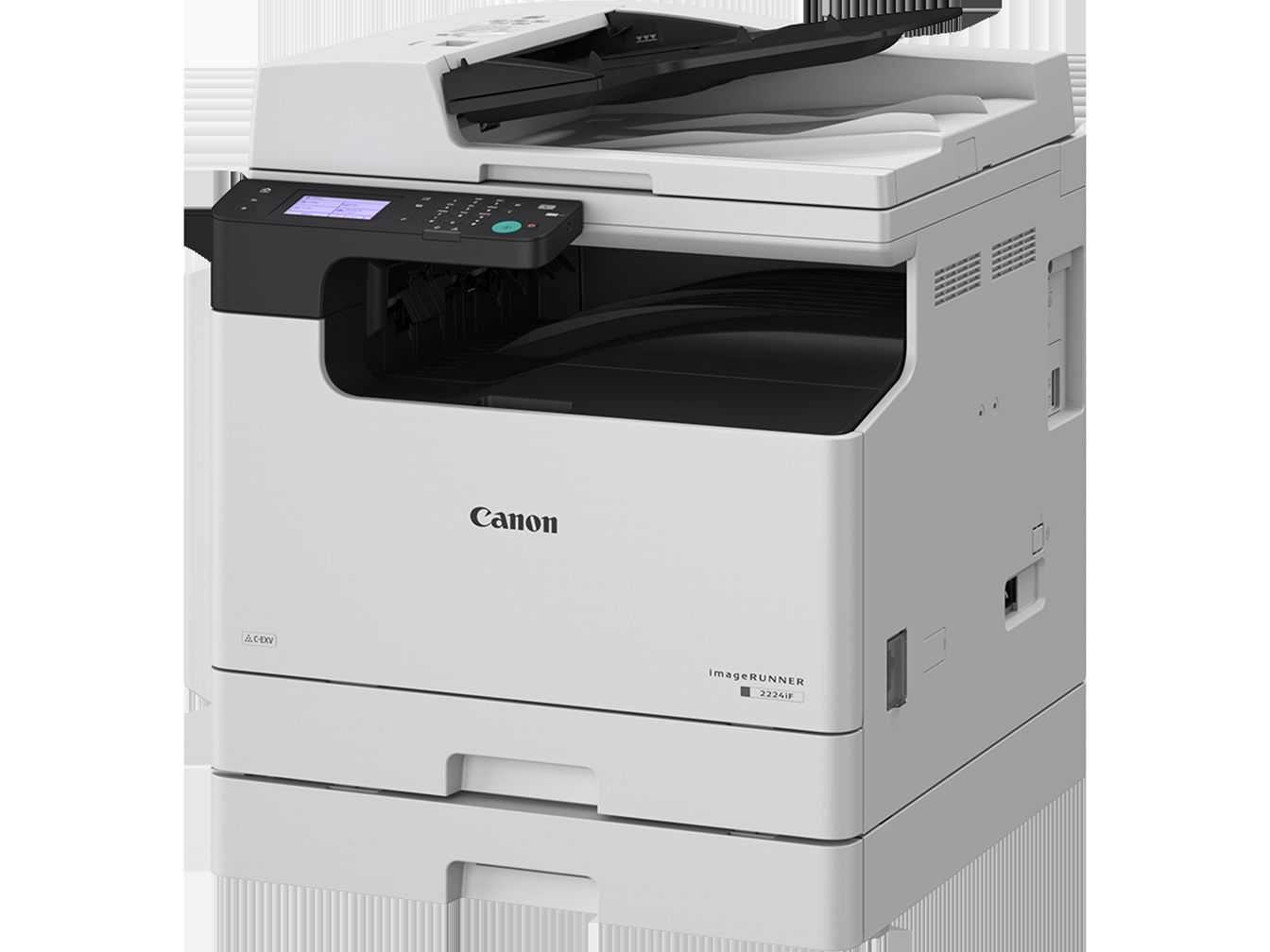

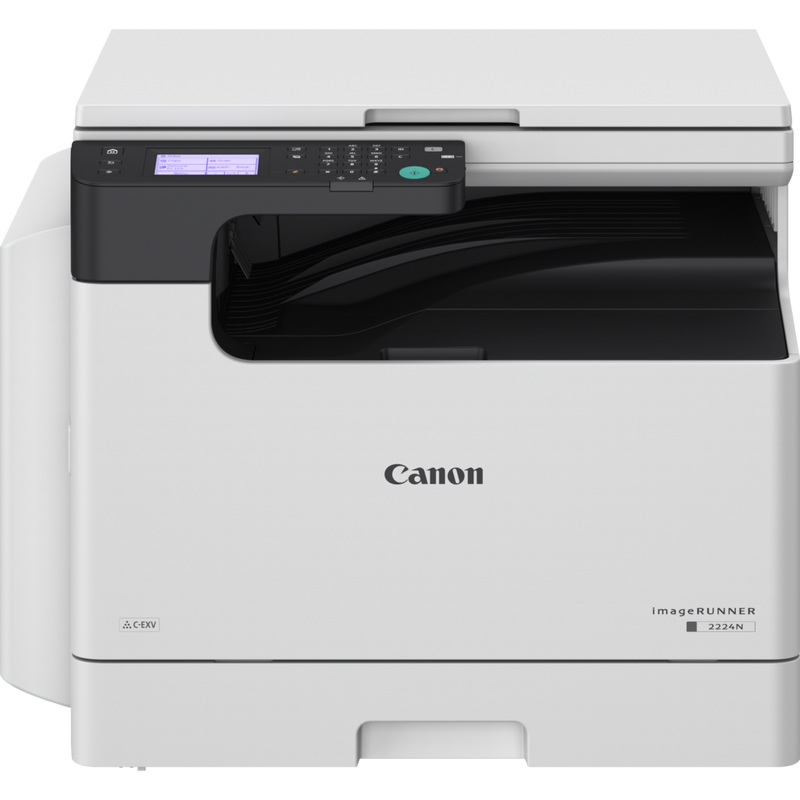

Canon 2224n with ADF

Specifications in detail

Main Unit

• Machine Type
  A3 Monochrome Laser Multifunctional
• Core Functions
  Print, Copy, Scan and optional Send
• Processor Speed
  1.6GHz Dual Core Processor
• Control Panel
  8.9 cm/3.5 inch monochrome Touch panel
• Memory
  Standard: 1.0GB RAM
• Storage
  Standard: 2GB eMMC
• Interface Connection
  NETWORK Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
  OTHERS Standard: USB 2.0 (Device) x1
• Paper Supply Capacity (A4, 80 gsm)
  Standard: 350 sheets
  Maximum: 600 sheets (with Cassette Feeding Module-AK1)
• Paper Output Capacity (A4, 80 gsm)
  Standard: 250 sheets
  Maximum: 250 sheets
• Finishing Capabilities
  Collate, Group
• Supported Media Types
  Multi-purpose Tray:
  Thin, Plain, Recycled, Thick, Color, Bond, Transparency, Label, Pre-punched, EnvelopePaper Cassette:
  Plain, Recycled, Color, Pre-punched

• Supported Media Sizes
  Multi-purpose tray:
  A3, A4, A4R, A5, A5R, B4, B5, B5R,
  Envelope (COM10, Monarch, DL, ISO-C5)
  Custom size Min. 95.0 x 148.0mm up tp 297.0 x 431.8mmPaper Cassette:
  Standard size: A3, A4, A4R, A5R, B4, B5, B5R

• Supported Media Weights
  Multi-purpose tray: 60 to 157 gsm
  Paper Cassettes: 64 to 90 gsm
  Duplex: 60 to 90 gsm
• Warm-up Time

  From Power On: 13 Seconds or Less^*

  * Time from device power-on, until copy ready (not print reservation)

  Quick start mode: N/A

  From Sleep Mode: 4.3 Seconds or Less

• Dimensions (W x D x H)
  627 x 589 x 502 mm (with Platen cover)
  627 x 589 x 594 mm (with Platen cover and cassette)
  627 x 607 x 698 mm (with DADF and cassette)
• Installation Space (W x D)
  1065 x 1285 mm
• Weight
  Standard: Approx. 31.6 kg without toner

Print Specifications

• Printing Method
  1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
  2-sided*: Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R)*With optional Duplex Unit-E1

• Print Resolution (dpi)
  Up to 1,200 x 1,200
• Page Description Languages
  Standard: UFRII, PCL6/PCL5
• Double-Sided Printing
  Optional
• Mobile / Cloud Printing

  AirPrint, Mopria, Canon PRINT Business and Universal Print by Microsoft

  A range of software solutions is available to provide printing from mobile devices and cloud-based services depending on your requirements.
  Please contact your sales representative for further information.

• Fonts
  PCL fonts: 45 Roman, 10 Bitmap fonts
• Print Features
  Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations,
  Toner Reduction, Poster Printing, Print Date
• Operating Systems

  UFRII: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022 PCL: Windows^®8.1 / Windows^®10 / Windows^®11 / Windows^®Server2012 / Windows^®Server2012 R2 / Windows^®Server2016 / Windows^®Server2019 / Windows^®Server2022

  PPD: Windows^®8.1/Windows^®10/Windows^®11

  As of Nov 2022

Copy Specifications

• Copy Speed
  1-sided : Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
  2-sided* : Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R)*with optional DADF

• First-Copy-Out Time
  Platen: Approx. 7.4 seconds or less
• Copy Resolution (dpi)
  600x 600
• Multiple Copies
  up to 999 copies
• Copy Density
  Automatic or Manual (9 Levels)
• Magnification
  25% – 400% (1% Increments)
• Preset Reductions
  25%, 50%, 70%, 100%, 141%, 200%, 400%
• Preset Enlargements
  25%, 50%, 70%, 100%, 141%, 200%, 400%
• Basic Copy Features
  Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample

Scan Specifications

• Type
  Standard Platen Cover and optional Duplexing Automatic Document Feeder [2-sided to 2-sided]
• Pull Scan Specifications
  ScanGear MF. For both TWAIN and WIA
  Windows^®8.1/ Windows^®10/Windows^®11
  macOS (10.12 or later)* As of Nov 2022

• Scan Resolution (dpi)
  Scan for Copy: up to 600 x 600
  Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600
  Scan for Fax: up to 200 x 400
• Document Feeder Paper Capacity (80 gsm)
  50 Sheets (80gsm)
• Acceptable Originals/Weights
  Platen: Sheet, Book
  Document Feeder sheet media weight :
  1-sided/2-sided continuous scanning: 52 to 105 gsm (BW/CL)Only 1-sheet feeding is supported in 37-52 and 105-128 gsm.

• Supported Media Sizes
  Platen max. scanning size: 297.0 x 432.0 mm
  Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R
  Custom size: 128.0 x 148.0 mm to 297.0 x 432.0 mm
• Scan Method
  Push Scan, Pull Scan, Scan to Network
• Scan Speed
  With optional DADF：
  1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy)
  2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy)
• Double-Sided Scanning
  Yes with optional DADF

Send Specifications

• Optional / Standard
  Optional
• Destination
  Standard: E-mail (SMTP), SMB3.0
• Address Book / Speed Dials
  LDAP (50)/Local (300)/Speed dial (296)
• Send Resolution (dpi)
  Push: 300 x 600 (SMB/FTP/Email)
  Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 x 400*, 600 x 600**colour mode is black and white only

• Communication Protocol
  File: SMB3.0 (TCP/IP)
  Email: SMTP (send)
• File Format

  Standard：TIFF, JPEG*, PDF, PDF (Compact)

  *Single Page Only

• Universal Send Features
  Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness, Preview, File Name, Subject/Message, Reply-to,E-mail Priority, TX Report

Store Specifications

• Memory Media
  Standard: USB Memory

Security Specifications

• Authentication & Access Control
  Department ID Authentication (Department ID and PIN Login, Function Level Login)
• Network Security
  TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), USB Port separation from LAN
• Document Security
  Print Security (Secure Print),
  Send Data Security* (Restricted E-mail/File send functions, Allow/Restrict Sending from History)*With optional Color Send Kit-AC1@E

• Device Security
  Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193)
• Device Management & Auditing
  Administrator Password, Digital Certificate and Key Management, Security Policy Setting

Environmental Specifications

• Operating Environment

  Temperature: 10 to 30 °C (50 to 86 °F)

  Humidity: 20 to 80 % RH (Relative Humidity)

• Power Source
  220-240V　50/60Hz (2.8)
• Power Consumption
  Maximum: Approx. 1,500 W
  Standby: Approx. 15.5
  Sleep mode: Approx. 0.9 WTypical Electricity Consumption (TEC):
  0.28kWh

  * As per US Energy Star 3.0

• Noise Levels
  Sound Power Level (LWA,m)
  Active (1-sided): 6.7B*, Kv: 0.3B*Sound Pressure Level (LpAm)
  Bystander’s position:
  Active (1-sided): 55 dB*

  * Reference value: measured only one unit with ISO7779, described with ISO9296:2017

Software & Printer Management

• Remote Management Tools
  iWEMC
  eMaintenance
• Scanning Software
  ScanGear
• Optimisation Tools
  Canon Driver Configuration Tool

Consumables

• Toner Cartridge/s
  Toner C-EXV 42 Black
• Toner Estimated Yield
  10,200 pages (A4)
  (Estimated @ 5% coverage)

Paper Supply Options

• Cassette Feeding Unit
  Name: Cassette Feeding Module-AK1
  Paper Capacity: 250 sheets x 1 (80 gsm)
  Paper Type: Plain, Recycled, Colour, Pre-punched
  Paper Size: A3, A4, A4R, A5, B4, B5, B5R
  Paper Weight: 64 to 90 gsm
  Power Source: Main Unit
  Dimensions (W x D x H): 581 x 575 x 92 mm
  Weight: Approx. 5.8 kg
• Paper Feeder
  Name: DADF-AY2
  Duplexing Automatic Document Feeder [2-sided to 2-sided]

Hardware Accessories

• Others
  Name: Plain Pedestal Type-J2
  Optional pedestal to raise the device when free-standing

System & Controller Options

• Send Options
  CLR SEND KIT-AC1

Other Options

• Others
  Instant Stapler-B1
